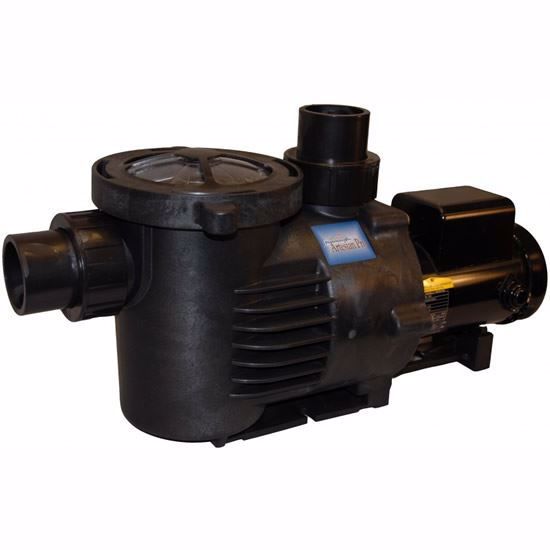

PerformancPro ArtesianPro
ArtesianPro is the pump you need for your higher flow applications. It not only delivers great flow rates at usable heads, but it does so efficiently!
ArtesianPro is the pump you need for your higher flow applications. It not only delivers great flow rates at usable heads, but it does so efficiently! You get the safety and convenience of self-priming along with great energy savings. For ease of use, it provides a large strainer basket, and an easy open Lexan lid. The specially designed lid and clamp ring insure a positive seal with very little o-ring wear.
- Money saving high efficiency pump and motor units.
- Quick disconnect unions are included.
- 2″ or 3″ fittings are available for easy attachment.
- Long life corrosion resistant Stainless Steel shaft seals.
- Impeller interchangeability allows you to easily change your pump’s performance.
- Top-of-the-line U.S. motors. All 1725 rpm units are totally enclosed and fan cooled for extended service life. All 3450 rpm units are open drip proof for extended service life.
- Units offer quiet operation.
- Safety first – out of the water (external) pumps help protect both you from annoying and potentially dangerous oil or electrical leaks.
- 3 year limited warranty.
|
Low RPM
Models
|
HP
|
Mtr Type
|
RPM
|
Volts
|
Max Watts
|
Max Head
|
Max Flow
|
|---|
| AP-1/4-66 |
1/4
|
TEFC
|
1725
|
115/230
|
370
|
21'
|
6600 GPH @ 2'
|
|---|
| AP-1/3-73 |
1/3
|
TEFC
|
1725
|
115/230
|
460
|
23'
|
7320 GPH @ 3'
|
|---|
| AP-1/2-92 |
1/2
|
TEFC
|
1725
|
115/230
|
620
|
24'
|
9240 GPH @ 4'
|
|---|
| AP-3/4-105 |
3/4
|
TEFC
|
1725
|
115/230
|
730
|
23'
|
10,500 GPH @ 4'
|
|---|
| AP-1-120 |
1
|
TEFC
|
1725
|
115/230
|
970
|
24'
|
12,000 GPH @ 6'
|
|---|
|
High Flow
Models
|
HP
|
Mtr Type
|
RPM
|
Volts
|
Max Amps @ 230V
|
Max Head
|
Max Flow
|
|---|
| AP-1/2-HF |
1/2
|
ODP
|
3450
|
115/230
|
4.3
|
38'
|
8,880 GPH @ 3'
|
|---|
| AP-3/4-HF |
3/4
|
ODP
|
3450
|
115/230
|
5.5
|
40'
|
10,680 GPH @ 5'
|
|---|
| AP-1-HF |
1
|
ODP
|
3450
|
115/230
|
7.9
|
45'
|
13,500 GPH @ 7'
|
|---|
| AP-1 1/2-HF |
1 1/2
|
ODP
|
3450
|
230
|
9.2
|
49'
|
13,980 GPH @ 8'
|
|---|
| AP-2-HF |
2
|
ODP
|
3450
|
230
|
10.2
|
54'
|
15,540 GPH @ 10'
|
|---|
| AP-3-HF |
3
|
ODP
|
3450
|
230
|
13.4
|
58'
|
17,820 GPH @ 13'
|
|---|
| AP-5-HF |
5
|
ODP
|
3450
|
230
|
17.6
|
68'
|
19,740 GPH @ 15'
|
|---|
|
High Head
Models
|
HP
|
Mtr Type
|
RPM
|
Volts
|
Max Amps @ 230V
|
Max Head
|
Watts @
Max Flow @ 230V
|
|---|
| AP-1-HH |
1
|
ODP
|
3450
|
115/230
|
7.4
|
75'
|
9,780 GPH @ 4'
|
|---|
| AP-1 1/2-HH |
1 1/2
|
ODP
|
3450
|
230
|
8.6
|
79'
|
10,980 GPH @ 5'
|
|---|
| AP-2-HH |
2
|
ODP
|
3450
|
230
|
9.9
|
81'
|
12,480 GPH @ 7'
|
|---|
| AP-3-HH |
3
|
ODP
|
3450
|
230
|
13.4
|
90'
|
13,380 GPH @ 7'
|
|---|
| AP-5-HH |
5
|
ODP
|
3450
|
230
|
19.2
|
93'
|
17,220 GPH @ 12'
|
|---|
|

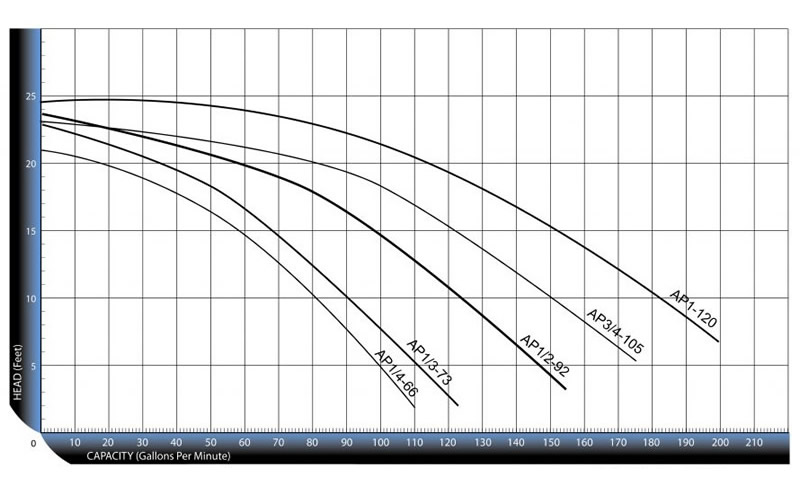

Low RPM
|

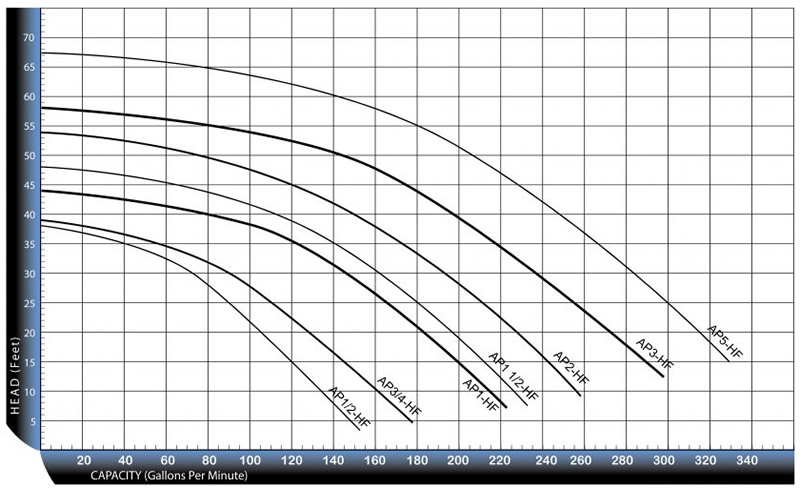

Hi Flow
|

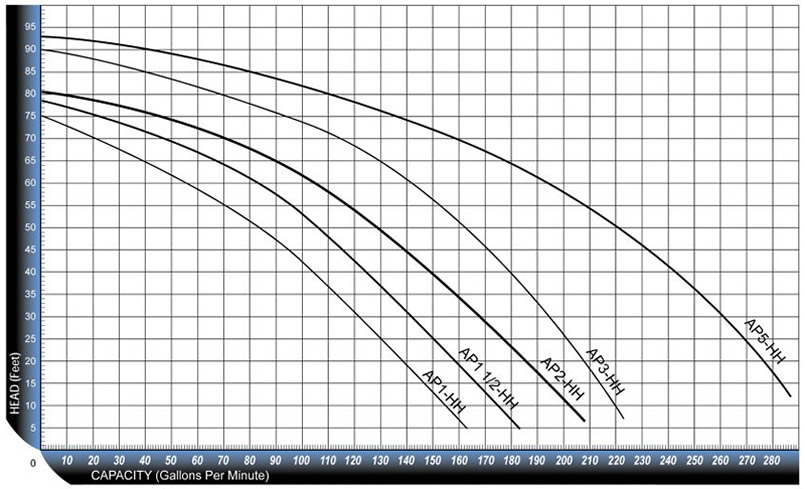

High Head
|
|---|
| Click on images for large view. |
|
|
|
|
