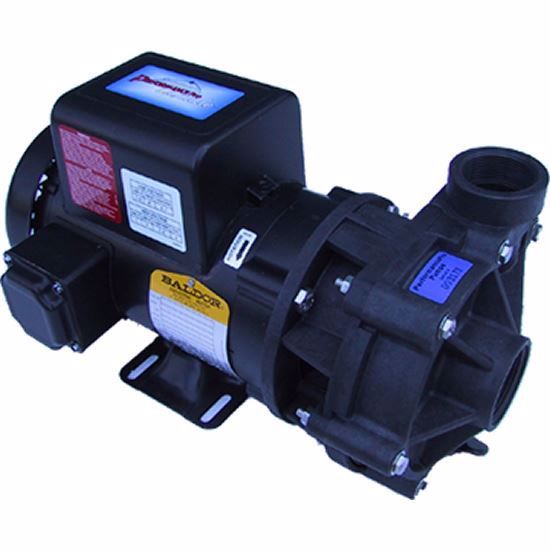

PerformancePro Cascade
PerformancePro Cascade is a high efficiency, industrial grade pump. Ideal for your pond, water feature, or general transfer and recirculation needs.
PerformancePro Cascade is a high efficiency, industrial grade pump. Ideal for your pond, water feature, or general transfer and recirculation needs – Cascade pumps produce excellent flow rates at sufficient pressure (head) to really get the job done. The industrial grade polypropylene housings are built for long term use. A strainer pot may be attached to facilitate priming in a suction lift application and to strain debris from the inflow.
- Money saving high efficiency.
- Long life, corrosion resistant, 316 Stainless Steel shaft seals.
- Impeller interchangeability allows you to easily change your pumps’ performance.
- Top-of-the-line U.S. motors. All 1725 rpm units are totally enclosed for excellent protection and long term reliability.
- Both pump ends and motors are designed for quiet operation.
- Safety first – out of pond pumps help protect both you and your fish from annoying and potentially dangerous oil or electrical leaks.
- 3 year limited warranty
|
Low RPM
Models
|
HP
|
Mtr Type
|
RPM
|
Volts
|
Max Watts
|
Watts @
Max Head
|
Watts @
Max Flow
|
|---|
|
C-1/8-22
|
1/8
|
TEFC
|
1725
|
115/230
|
120
|
114 @ 16'
|
123 @ 2200 GPH @ 4'
|
|---|
|
C-1/8-26
|
1/8
|
TEFC
|
1725
|
115/230
|
159
|
127 @ 20'
|
142 @ 2616 GPH @ 4'
|
|---|
|
C-1/8-36
|
1/8
|
TEFC
|
1725
|
115/230
|
186
|
108 @ 16'
|
187 @ 3612 GPH @ 7.5'
|
|---|
|
C-1/4-44
|
1/4
|
TEFC
|
1725
|
115/230
|
297
|
195 @ 22'
|
297 @ 4404 GPH @ 10'
|
|---|
|
C-1/4-49
|
1/4
|
TEFC
|
1725
|
115/230
|
367
|
200 @ 23'
|
320 @ 4944 GPH @ 13'
|
|---|
|
High RPM
Models
|
HP
|
Mtr Type
|
RPM
|
Volts
|
Max Amps
|
Amps @
Max Head
@ 230V
|
Watts @
Max Flow
@ 230V
|
|---|
|
C 1/3
|
1/3
|
ODP
|
3450
|
115/230
|
4.0
|
3.42 @ 56'
|
3.62 @ 2370 GPH @ 3'
|
|---|
|
C 1/2
|
1/2
|
ODP
|
3450
|
115/230
|
3.4
|
2.78 @ 71'
|
2.70 @ 3570 GPH @ 7'
|
|---|
|
C 3/4
|
3/4
|
ODP
|
3450
|
115/230
|
4.3
|
3.34 @ 79'
|
3.37 @ 4818 GPH @ 12'
|
|---|
|
C 1
|
1
|
ODP
|
3450
|
230
|
5.7
|
6.89 @ 81'
|
4.30 @ 6240 GPH @ 11'
|
|---|
|
C 1.5
|
1 1/2
|
ODP
|
3450
|
230
|
6.0
|
3.61 @ 80'
|
5.05 @ 6720 GPH @ 16'
|
|---|
|
C 2
|
2
|
ODP
|
3450
|
230
|
8.6
|
4.31 @ 86'
|
8.39 @ 8640 GPH @ 21'
|
|---|
|

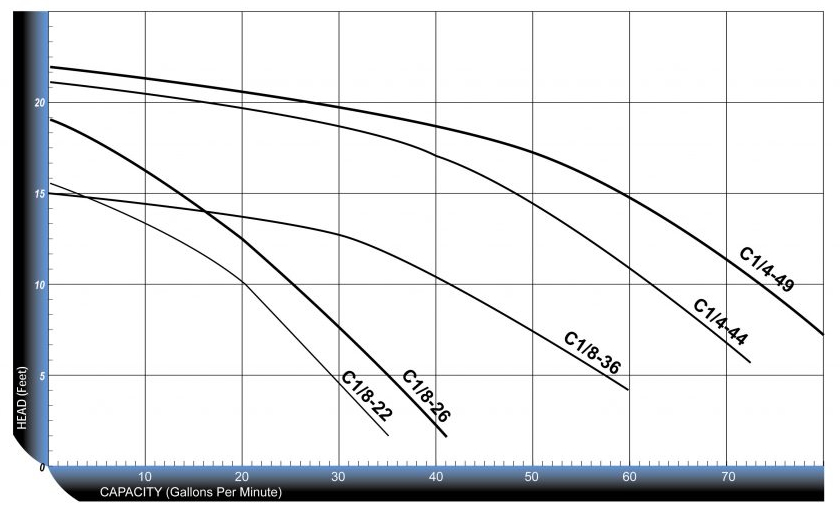

Low RPM
|

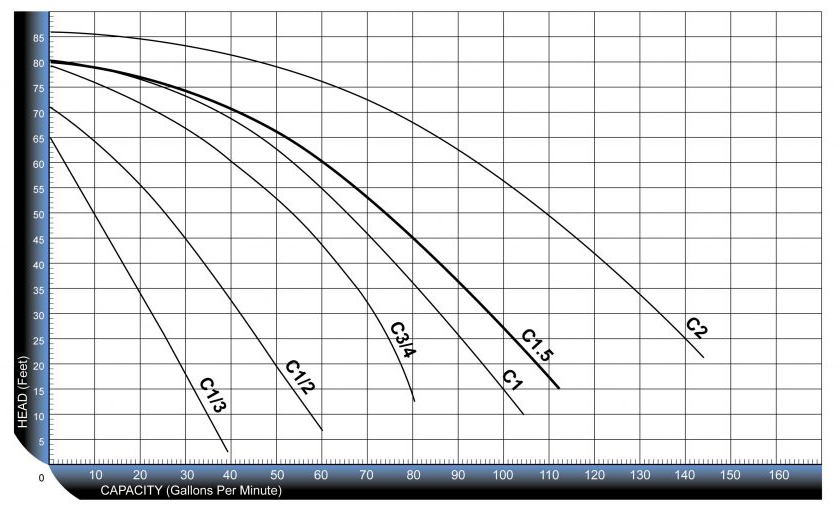

Hi RPM
|
|---|
| Click on images for large view. |
|
|
|
